Make washdown hose connections quick and convenient. The Flushmaster Quick Connect Water Spigot combines a solid marine-grade 316 stainless steel baseplate, integrated Quick Connect and quarter-turn shutoff valve in one clean onboard fitting.

Choose a 45° or 90° configuration to suit your mounting location and hose direction. Attach the included Female Quick Connect Adapter to your hose, connect it to the spigot, and turn the valve to control water flow at the connection.

Built for the way you boat

• Quick hose changes: Connect and disconnect at the spigot without repeatedly threading the hose onto it.
• Water control within reach: An integrated quarter-turn valve lets you open or close flow at the fitting.
• Solid 316 stainless steel: Marine-grade construction with a polished finish that complements your boat’s hardware.
• Two barb sizes supplied: A 3/4″ hose barb is installed; a 1/2″ hose barb is included to match your boat’s plumbing.
• Coiled-hose connection included: The nylon male-to-male fitting joins a compatible washdown hose’s female end to the Female Quick Connect Adapter.

Choose your angle

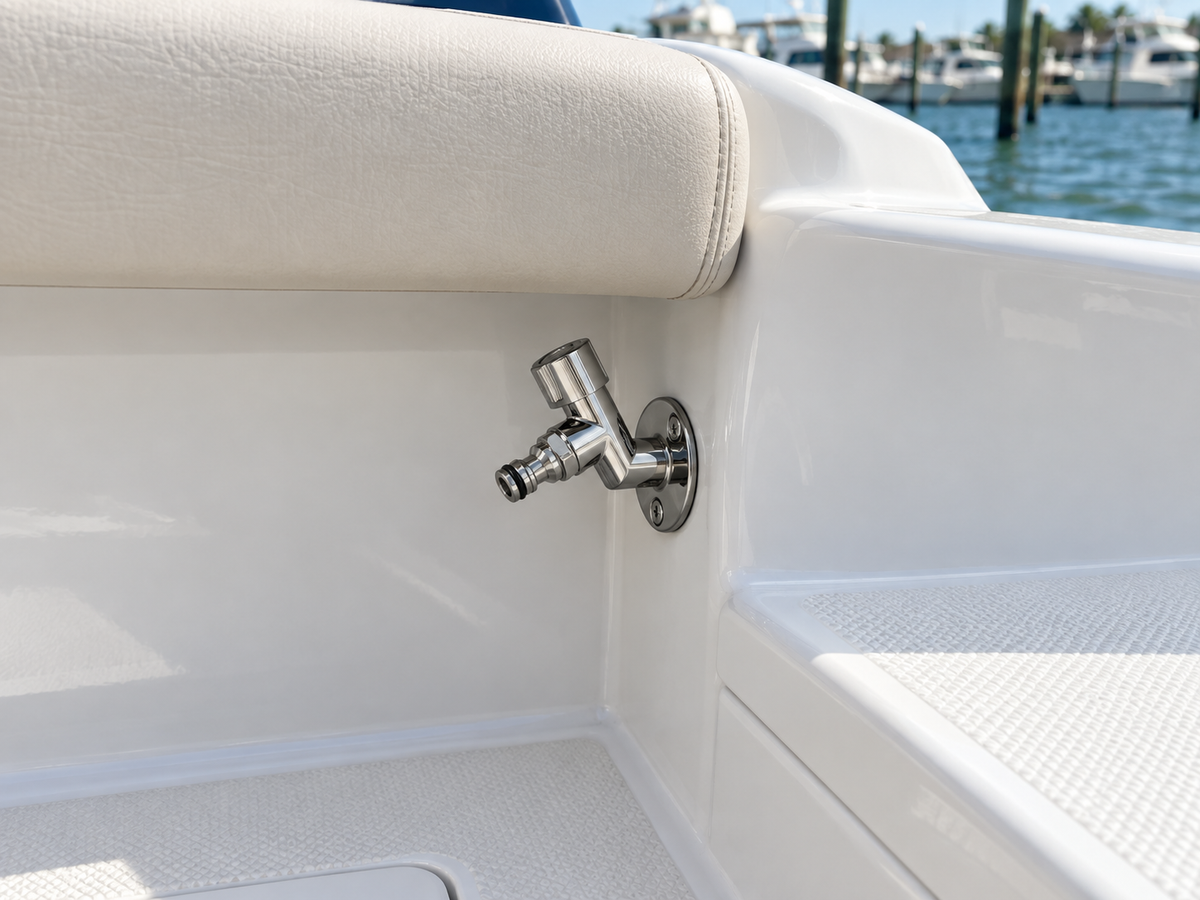

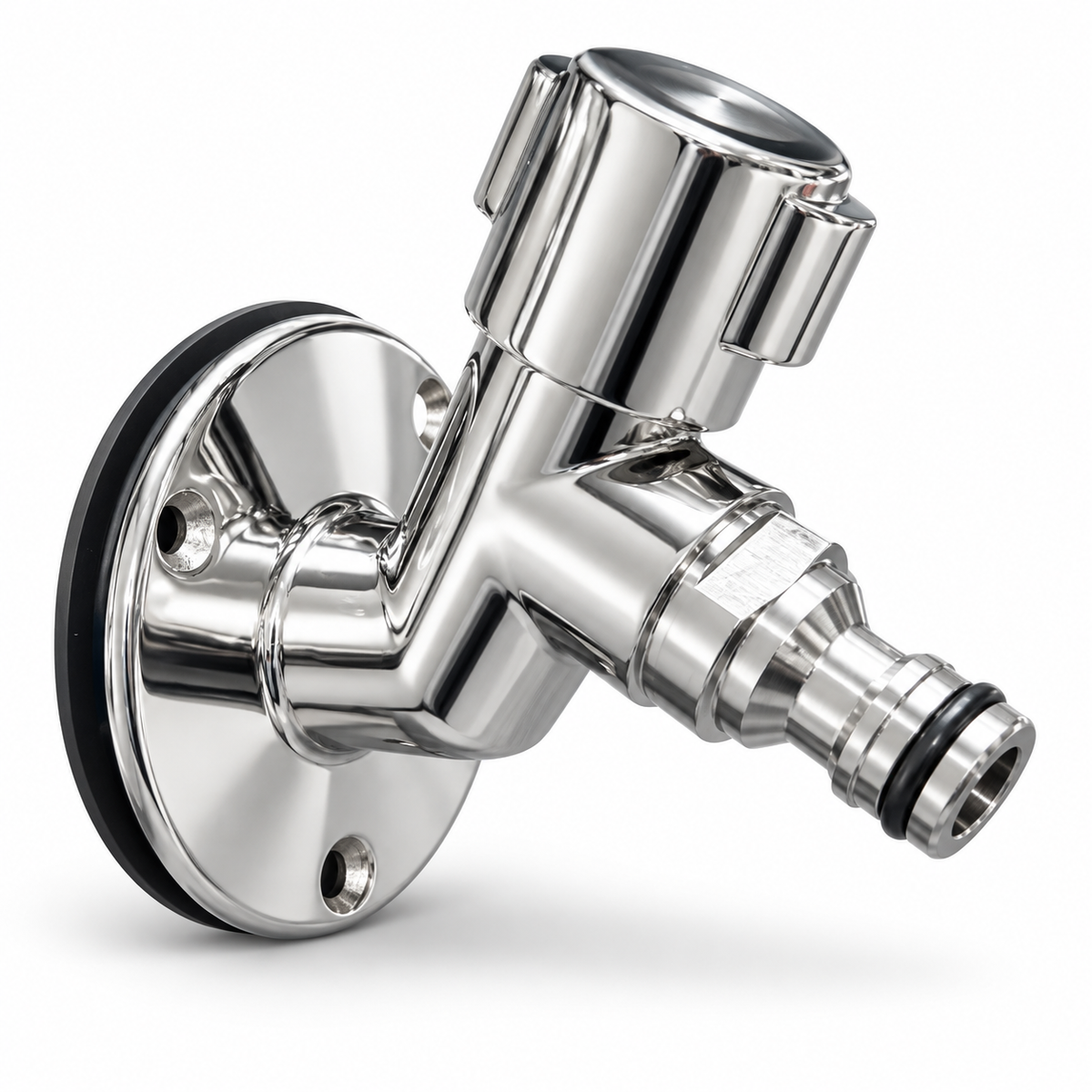

45° — SM-QCWS45: Angled outlet configuration.

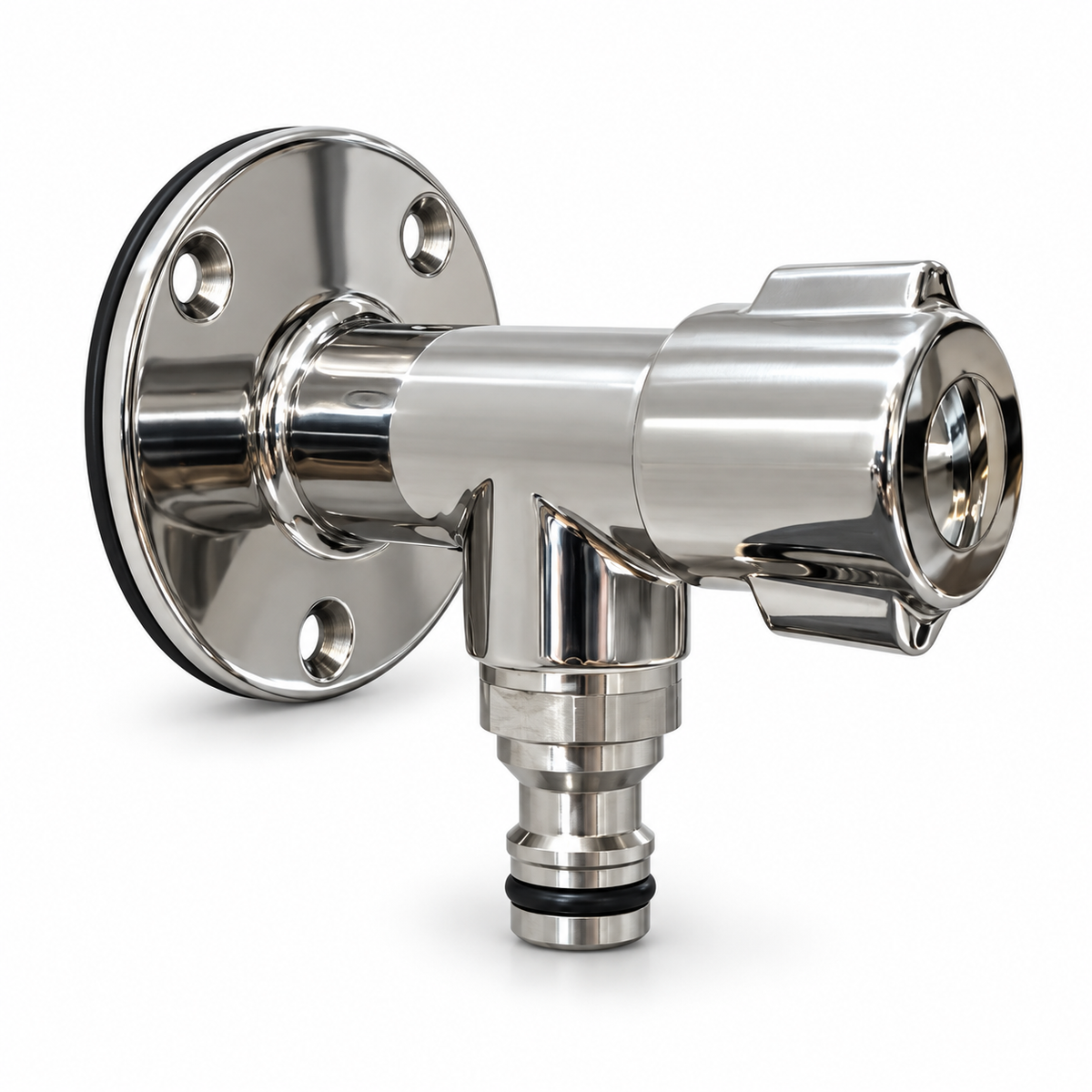

90° — SM-QCWS90: Right-angle outlet configuration.

Both include the same connection accessories. Choose by the space available, the direction you want the hose to run, and access to the valve. Check mounting dimensions and clearance before installation.

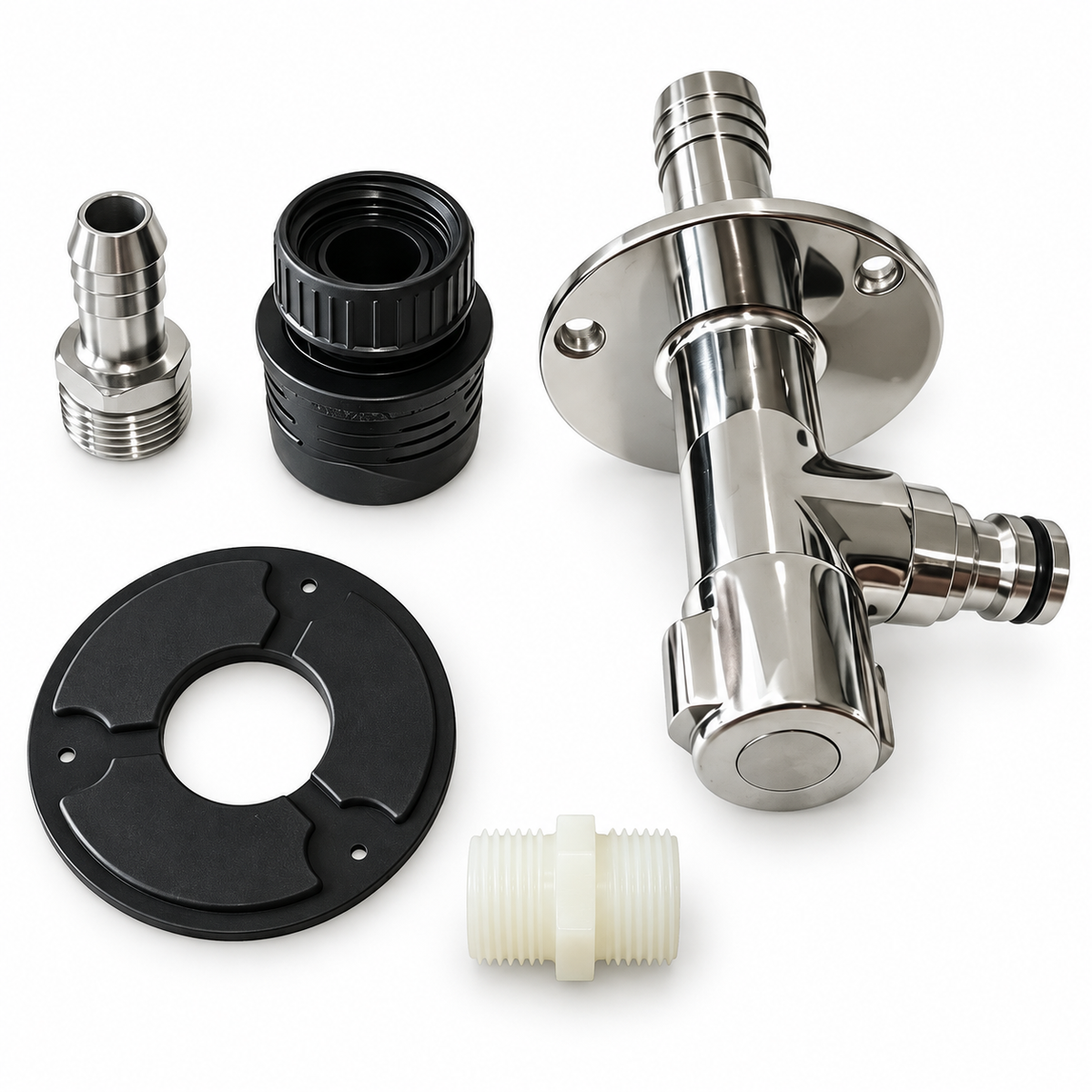

What’s included

• (1) Solid 316 stainless steel baseplate with Quick Connect and quarter-turn shutoff valve in your selected angle
• (1) Female Quick Connect Adapter
• (1) 3/4″ hose barb, installed
• (1) 1/2″ hose barb
• (1) Nylon male-to-male fitting for the washdown-hose connection
• (1) Rubber molded gasket

Hose and spray nozzle are not included. Installation hose, clamps, fasteners and sealant are selected for your boat and are not listed as included.

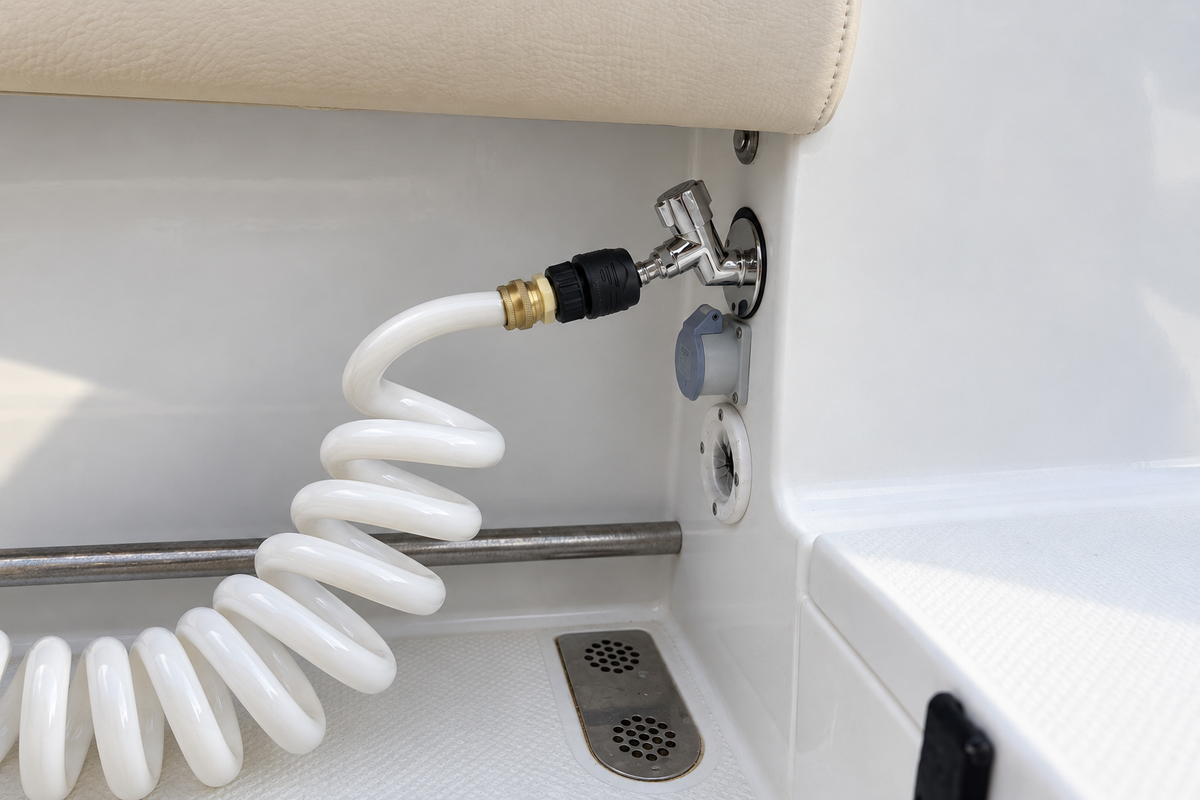

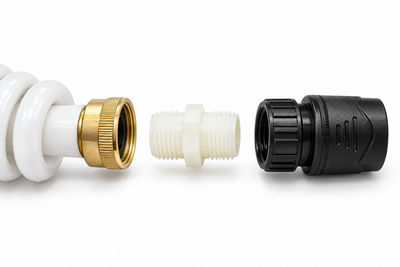

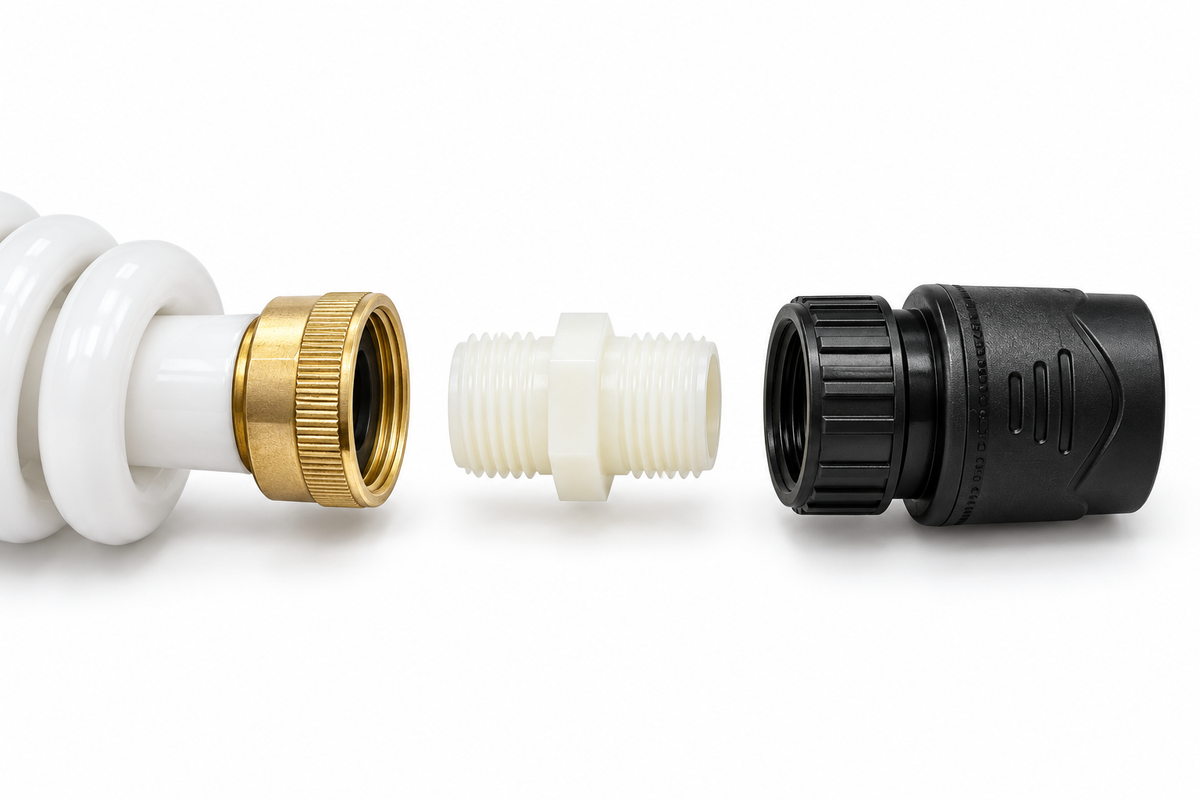

Connect a coiled washdown hose

1. With water off, thread one end of the nylon male-to-male fitting into the hose’s female end.
2. Thread the Female Quick Connect Adapter onto the other end of the nylon fitting.
3. Connect the adapter to the spigot. Open the quarter-turn valve when ready to use. Close the valve and relieve hose pressure before disconnecting.

Installation and fit

Designed for compatible onboard washdown plumbing. Mount on a suitable, accessible interior surface with room behind the panel for the supply hose and clamps. Check the existing opening, screw spacing, panel thickness and clearance; fit varies by boat. Match the installed barb to the supply hose’s inside diameter. A qualified marine technician can confirm the installation requirements for your vessel.
